Configure a Dial-Up Connection to the Internet in Windows XP

Introduction

The University of Wyoming (UW) provides students, staff, and faculty with off-campus dial-up Internet access at no cost. This access requires that you have a functioning dial-up modem, a phone connection, and a valid UWYO domain account. For computers that are not UW-owned, Information Technology supports only the UW-specific setup and configuration of the software as presented in this document.

Windows XP offers an easy way to set up and configure a dial-up connection to the Internet. The following steps should be used for setting up a basic connection to the Internet. Though this connection will allow you to access resources on the UW network, it will prompt for your UWYO domain username and password with each connection. If you will be connecting to the UW network on a regular basis, please see How To Configure a Dial-Up Connection to the UW Network in Windows XP (www.uwyo.edu/askit/displaydoc.asp?askitdocid=125&parentid=1 ).

Procedure

  1. Configuring the Dial-Up Connection

    1. Click the Start menu button, and click Control Panel.

    2. In the Control Panel, click Network and Internet Connections.

    3. In the Network and Internet Connections window, click Set up or change your Internet connection.

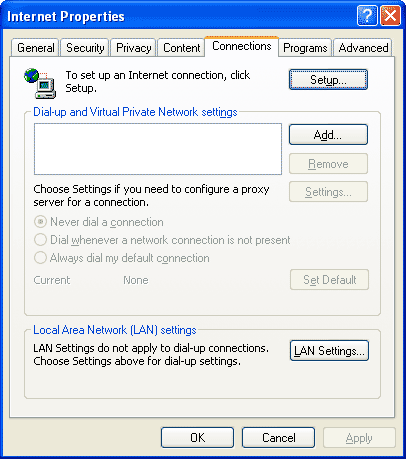

    4. In the Internet Properties window, with the Connections tab selected, click the Setup button.
      (Image)

      Internet Properties window
    5. In the Welcome to the New Connection Wizard window, click Next.

    6. In the Network Connection Type window, select Connect to the Internet, and click Next.
      (Image)

      New Connection Wizard "Network Connection Type" window
    7. In the Getting Ready window, choose Set up my connection manually, and click Next.
      (Image)

      New Connection Wizard "Getting Ready" window
    8. In the Internet Connection window, select Connect using a dial-up modem, and click Next.
      (Image)

      New Connection Wizard "Internet Connection" window
    9. In the Connection Name window, in the ISP Name box, type UW PPP (or any name you choose), and click Next.
      (Image)

      New Connection Wizard "Connection Name" window
    10. In the  Phone Number to Dial window, in the Phone number box, type 721-0400 (for faculty and staff) or 742-1200 (for students), and click Next.

      NOTE: If you are dialing from the student apartments on campus, you must type a 9 and then the telephone number.
      (Image)

      New Connection Wizard "Phone Number to Dial" window
    11. In the Internet Account Information window, enter your UWYO domain username and password, select the appropriate check boxes based on your individual preferences, and then click Next.
      (Image)

      New Connection Wizard "Internet Account Information" window
    12. In the Completing the New Connection Wizard window, if you choose to, select the Add a shortcut to this connection to my desktop check box, and click Finish.
      (Image)

      New Connection Wizard "Completing the New Connection Wizard" window
  2. Using the Dial-Up Connection

    1. Double-click the shortcut for this connection located on your Desktop, and skip to step D., or click the Start menu button, and click Control Panel.

    2. In the Control Panel, click Network and Internet Connections.

    3. In the Network and Internet Connections window, click Network Connections. In the Network Connections window, double-click the icon for this connection.

    4. In the Connect window, make sure everything is correct, and click Dial.

    NOTE: There is a time limit set on the length of a session because of the high demand for dial-up connections. These limits vary depending on the time of day. For more information on these restrictions, see http://www.uwyo.edu/infotech/services/network/modems.asp.


Tips

  1. UW Faculty and Staff

    1. To connect to UW resources on UWAPPS, click the Start menu button, click Run, and type \\uwapps.uwyo.edu.  When prompted for a username and password, enter your UWYO domain username in the form UWYO\username.

    2. To connect to a particular computer (like the computer in your office), click the Start menu button, click Run, and type \\computername.uwyo.edu\sharename. When prompted for a username and password, enter your UWYO domain username in the form UWYO\username. Files may be transferred from the home computer to the office computer.
  2. UW Students

    1. To connect to your personal H:\ drive storage, click the Start menu button, click Run, and type \\Arthur.uwyo.edu\username$.  When prompted for a username and password, enter your UWYO domain username in the form UWYO\username. Files may be transferred from the home computer to the personal storage.



Reviewed: 1006 By: CD

Additional help with the installation and configuration of
UW-supported software is available:
Faculty/Staff
Contact the IT Help Desk at 766-HELP (4357), option 1
Email UserHelp@uwyo.edu
Contact your IT user consultant
(www.uwyo.edu/infotech/services/helpdesk/uc/)

Students
Email ASU-IT@uwyo.edu
Contact the IT Help Desk at 766-HELP (4357), option 1
Come to the student computer lab in the lobby of the
Information Technology Center.
