Joseph Holles

Professor
Room 3016, Engineering Building
University of Wyoming
College of Engineering and Physical Sciences
Department of Chemical and Biomedical Engineering & Energy and Petroleum Engineering
Dept. 3295
1000 E. University Avenue
Laramie, WY 82071
E-mail: jholles@uwyo.edu
phone: (307) 766-6772
Fax:    (307) 766-2221

Holles

Education:

  • Ph.D. Chemical Engineering, University of Virginia, 2000
  • M.E. Chemical Engineering, University of Virginia, 1998
  • B.S. Chemical Engineering, Iowa State University, 1990

Specialization:

  • Heterogeneous Catalysis
  • Materials Characterization
  • Renewable Fuels

Our work was recently featured on the cover of Catalysis Science & Technology:

catalysis science and tech

http://pubs.rsc.org/en/content/articlepdf/2017/cy/c7cy90076g

My research interest is nanoscale materials design and synthesis for catalytic applications. The design and synthesis is then complemented with reactivity studies and in-situ characterization of the catalytic material. In particular, X-ray absorption spectroscopy (XAS) experiments are periodically conducted at the Advanced Photon Source at Argonne National Laboratory. The combination of design, synthesis, and characterization allows for the direct translation of variations in the material at the atomic/molecular scale to expressed macroscopic properties such as improved reactivity. Our main area of current research involving nanoscale design and synthesis of catalytic materials is pseudomorphic overlayer bimetallic catalysts.

Pseudomorphic Overlayer Catalysts:

Supported metal catalysts have been the mainstay of heterogeneous catalysts for many years. These catalysts are widely used since they combine the desirable catalytic properties of the metal with the enhanced activity resulting from their support on a high surface area material. More complicated reactions often use bimetallic catalysts. The drawback of bimetallic catalysts is that they are often a simple alloy resulting from an equilibrated mixture of the two metals. In particular, the bimetallic catalysts usually have both elements randomly distributed throughout the particle which therefore contains no atomic uniformity in the arrangement of the two elements. Design of supported bimetallic catalysts by synthesizing non-equilibrated arrangements could lead to new compositions of matter and ultimately to more efficient catalysts.

The importance of materials design at the atomic level is demonstrated through the use of computational quantum-chemical techniques. It has been shown theoretically that pseudomorphic overlayers of a metal on top of a different metal may provide lower intrinsic barriers to reaction products than pure metals [Figure 1]. Therefore, it is desirable to extend this concept from the theoretical to the practical by synthesizing actual supported metal catalysts that could have industrial applications.  Our goal is to identify reactions where specific binding issues are known to affect reaction rates.  We will then use overlayer catalysts to address these binding issues and increase reaction rates.

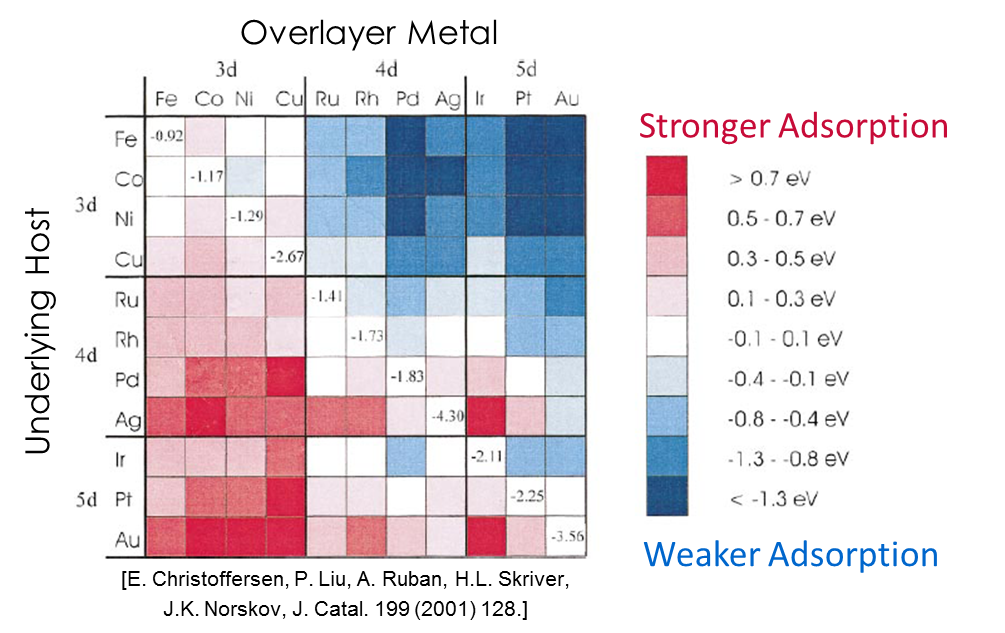

change in absorption strength for overlayer metals

Figure 1. Change in adsorption strength for overlayer metals on underlying host.

We have examined core@shell Ni@Pt and Co@Pt catalysts for biorenewable fuel applications.  We have looked at aqueous phase reforming (APR) of lactose to synthesis gas and aqueous phase hydrodeoxygenation (APH) of glycerol.  In both cases, strong binding of CO is known to block catalyst sites and limit activity.  Initial worked examined the ability for these overlayer catalysts to reduce the binding strength of the Pt overlayer metal.  Figure 2 demonstrates how the hydrogen heat of adsorption for a Ni@Pt catalyst is decreased compared to pure Pt or a random structure Pt/Ni bimetallic catalyst.

heat_absorption

Figure 2. Hydrogen heat of adsorption is decreased for Ni@Pt overlayer catalyst compared to pure Pt or a random structure Ni/Pt bimetallic catalyst.

These catalysts are then examined use a descriptor reaction.  Ethylene hydrogenation is used as a descriptor reaction [Figure 3] since it is very sensitive to hydrogen surface coverage which is again strongly affected by hydrogen binding strength.  For Ni@Pt, because the Ni host decreases the binding strength of the Pt, the hydrogen surface coverage should decrease and the reaction rate should decrease as observed in Figure 3.  The catalysts have thus indicated that they may increase the activity of APR and APH reactions.

Ethylene hydrogenation turnover frequency

Figure 3. Ethylene hydrogenation turnover frequency showing decreased activity (as a result of decreased hydrogen binding strength) for overlayer catalyst.

Ni@Pt and Co@Pt catalysts were examined for APH of glycerol.  In this reaction is desirable to remove the –OH functionalities (C-O bond breaking) of the molecule while minimizing C-C bond breaking. Figure 4 shows that Ni@Pt catalysts will increase the glycerol reaction rate compared to pure Pt.  However, it results in a significant increase in C-C bond breaking as methane.  In contrast, a Co@Pt catalyst not only increases the overall reaction rate, it produces similar amounts of the desired propane and propylene as the pure Pt.

APH of glycerol for overlayer catalysts

Figure 4. APH of glycerol for overlayer catalysts compared to pure Pt and random bimetallics. Overlayers conversion of glycerol compare to pure Pt.

Similar APH results were also demonstrated for Ir@Pt overlayer catalysts.  The Ir@Pt system was examined since Ir atoms have a similar size compared to Pt.  The goal for this work was to determine if overlayer coverage could be increased when the two metals have more similar sizes.  By using Ir as the base metal, we were able to double the surface Pt coverage compared to using a Ni base.  Elemental mapping and elemental profiling in Figure 5 also shows that the Pt was well dispersed on the Pt in an overlayer type of structure.

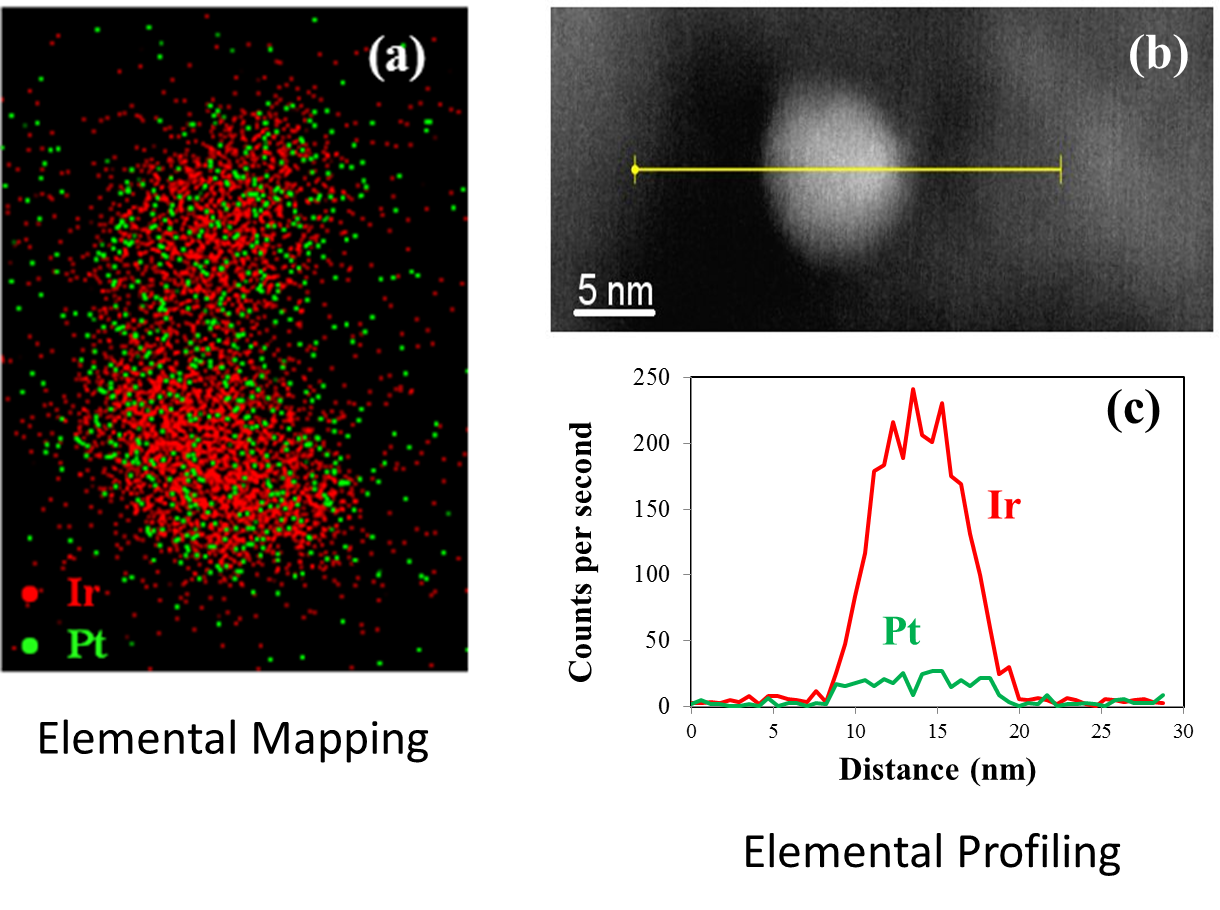

Elemental mapping and profiling of the Pt on Ir

Figure 5. Elemental mapping and profiling of the Pt on Ir overlayer catalysts show a well dispersed Pt on Ir in an overlayer structure.

If the core@shell catalysts are truly behaving in the desired manner, there should be a change in the electronics of the overlayer metal compared to a pure metal catalyst.  When the binding strength is decreased, it is due to the underlying host metal withdrawing some electrons from the overlaying surface metal.  This can be examined using X-ray Absorption Near Edge Spectroscopy (XANES) using the Advanced Photon Source at Argonne National Laboratory.  Figure 6 shows the XANES spectra of a series of Ni@Pt overlayer, Pt-Ni bimetallic and pure Pt.  The peak height of Ni@Pt SD (lowest Pt amount) is the highest.  As more Pt is added, the Pt becomes more like pure Pt.  Thus, the desired electronic effect has been demonstrated.  While the Ni-Pt bimetallic shows a high Pt edge, extended x-ray absorption fine structure (EXAFS) analysis shows that it is Pt in a Ni matrix while the Ni@Pt shows Pt in an overlayer structure.

XANES White Line

Figure 6. XANES white line for Ni@Pt overlayer catalysts showing the electronic effect (higher edge height) for the overlayer catalysts compared to pure Pt.

Using Life Cycle Assessment to Guide Catalysis Research

We have demonstrated the use of life cycle assessment (LCA) as a tool to drive catalyst development by comparing the environmental impact of acrylic acid production from propylene, the current commercial feedstock, to propane as an alternate feedstock.  Acrylic acid is currently produced in a two step process from propylene.  Because of its lower cost, propane is an attractive alternative to propylene; however no catalysts are currently available which can compete with the high yield of the propylene process.  A comparison of the two feedstocks at the 87% yield of the current commercial propylene process demonstrated that switching to propane would decrease the environmental impact of the process by 20%.  Determination of environmental impact as the yield from the potential propane process was varied, predicts that at yields exceeding 6%, the propane process will have a lower environmental impact than the current propylene process.  The current catalyst yield of up to 48% for the propane process exceeds these values.  If reaction and waste gas heat are converted to electricity instead of steam, yields in excess of 61% will result in a lower total impact for the propane process.  Based on raw material costs, the economic break-even point for the propane process is 59% yield.  The similar yields of ~60% from propane required by economics and for a lower environmental impact represents a factor of 1.25 increase in yield over the current state-of-the-art propane catalyst compared to a factor of 1.81 increase in yield required to equal the current propylene yield.  Thus, the proposed propane process may be much closer to viability than previously realized.  This analysis provides an example of how LCA can compare chemical production from two different feedstocks, even if a catalyst for the reaction of interest has not been designed.  The LCA analysis can also be used to determine target goals for catalysis research.

Selected Publications:

Patents:

  • Holles, J.H., Catalytic Wet Oxidation of Lactose. U.S. Patent #7,371,362, May 13, 2008.
  • Brait, A., Davis, M.E., Dillon, C.J., Holles, J.H., and Labinger, J., Polyoxometalate Catalysts and Catalytic Process.  U.S. Patent #7,019,165, March 28, 2006.
  • Brait, A., Davis, M.E., Dillon, C.J., Holles, J.H., and Labinger, J., "Polyoxometalate Catalysts and Catalytic Process." U.S. Patent #6,914,029, July 5, 2005.
