Air Preheater Diagram



← Previous | Next →

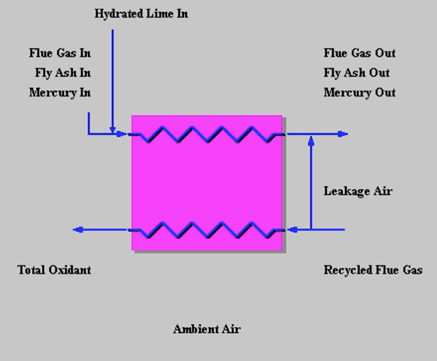

The Air Preheater Diagram parameter screen gives an overview of the flows entering and exiting the air preheater. It does not contain any numbers and is strictly for reference:


PC: SET PARAMETERS: Base Plant: Air Preheater Diagram
