In-Furnace Controls Diagram



← Previous | Next →

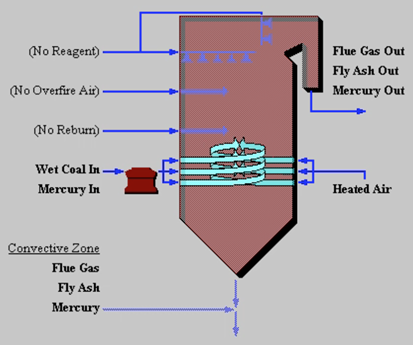

The In-Furnace Controls Diagram parameter screen gives an overview of the in-furnace controls. It will vary slightly depending on the options shown in the next screen, Config . This diagram does not contain any numbers and is strictly for reference:


PC: SET PARAMETERS: NOx Control: In-Furnace Controls: In-Furnace Controls Diagram
