IECM 12.0 beta User Manual > Modules Included with the IECM > Pulverized Coal (PC) Plant > SET PARAMETERS > CO2 Capture, Transport & Storage > 1. Amine System > Amine System Diagram |
|

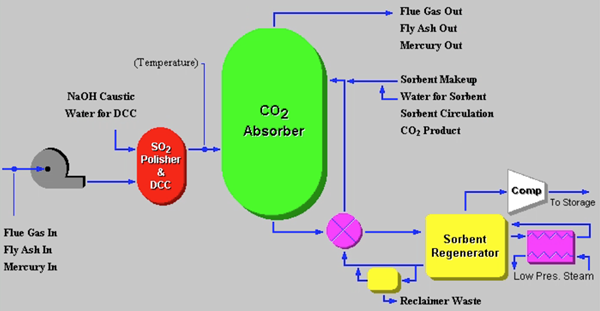

The Amine System Diagram parameter screen gives an overview of the amine CO2 control system in PC and NGCC plants. This diagram does not contain any numbers and is strictly for reference:
PC: SET PARAMETERS: CO2 Capture, Transport & Storage: 1. Amine System: Amine System Diagram
