IECM 12.0 beta User Manual > Modules Included with the IECM > Pulverized Coal (PC) Plant > SET PARAMETERS > CO2 Capture, Transport & Storage > 1. Chemical Looping > Air Separation Diagram |
|

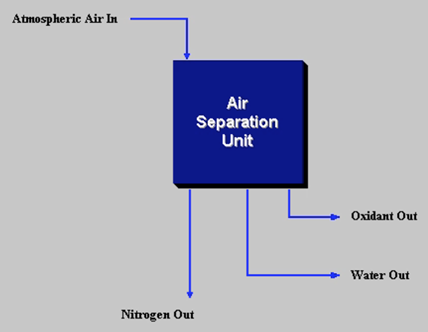

The Air Separation Diagram parameter screen gives an overview of the chemical looping system's air separation unit. This diagram does not contain any numbers and is strictly for reference:
.png)
PC: SET PARAMETERS: CO2 Capture, Transport & Storage: 1. Chemical Looping: Air Separation Diagram
