Membrane System Diagram

← Previous | Next →

The Chemical Looping Diagram parameter screen gives an overview of the chemical looping system. It does not contain any numbers and is strictly for reference. One of three diagrams is shown, depending on the System Configuration chosen on the Config screen:

•2-Step w/ Air Sweep:

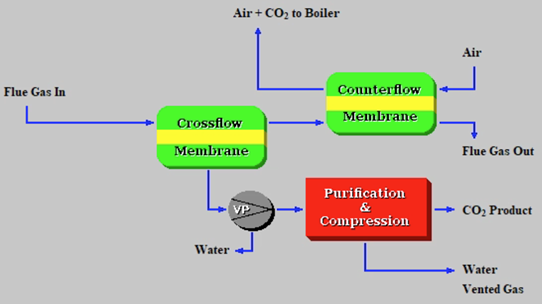

PC: SET PARAMETERS: CO2 Capture, Transport & Storage: 1. Membrane System: Membrane System Diagram (2-Step w/ Air Sweep)

•NETL 2-Step w/ Sweep:

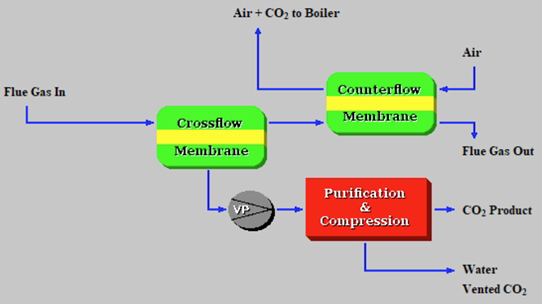

PC: SET PARAMETERS: CO2 Capture, Transport & Storage: 1. Membrane System:Membrane System Diagram (NETL 2-Step w/ Sweep)

•2-Stage Cascade:

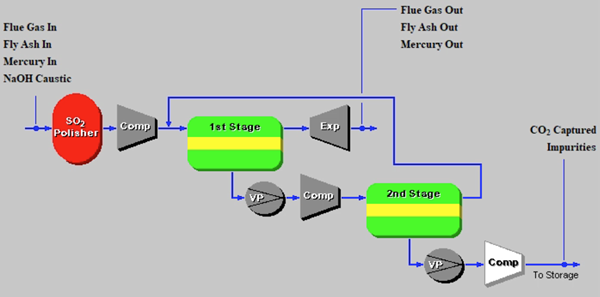

PC: SET PARAMETERS: CO2 Capture, Transport & Storage: 1. Membrane System: Membrane System Diagram (2-Stage Cascade)
