IECM 12.0 beta User Manual > Modules Included with the IECM > Pulverized Coal (PC) Plant > SET PARAMETERS > CO2 Capture, Transport & Storage > 4. Pipeline Transport > Pipeline Transport Diagram |
|

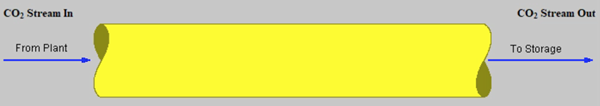

The Pipeline Transport Diagram parameter screen gives an overview of the pipeline transport system for all plant types. This diagram does not contain any numbers and is strictly for reference:
PC: SET PARAMETERS: CO2 Capture, Transport & Storage: 4. Pipeline Transport: Pipeline Transport Diagram
