IECM 12.0 beta User Manual > Modules Included with the IECM > Pulverized Coal (PC) Plant > SET PARAMETERS > CO2 Capture, Transport & Storage > 5. CO2 Storage > Geologic > CO2 Storage Diagram |
|

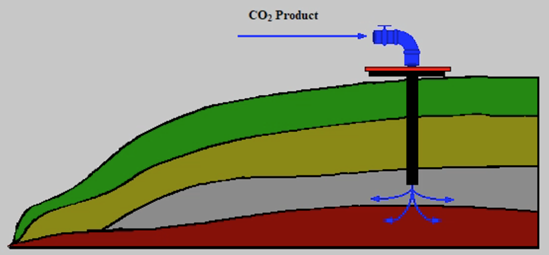

The CO2 Storage Diagram parameter screen gives an overview of the CO2 storage system. This diagram does not contain any numbers and is strictly for reference:
PC: SET PARAMETERS: CO2 Capture, Transport & Storage: 5. CO2 Storage: CO2 Storage Diagram
