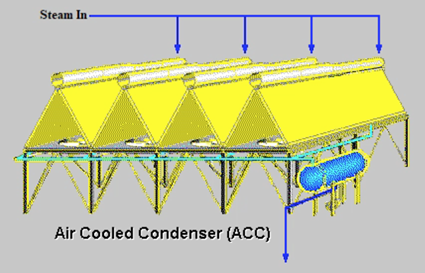

The Air Cooled Condenser Diagram parameter screen gives an overview of the air cooled condenser system. It is the same for all plant types. This diagram does not contain any numbers and is strictly for reference:
PC: SET PARAMETERS: Water Systems: Air Cooled Condenser Diagram
