IECM 12.0 beta User Manual > Modules Included with the IECM > Pulverized Coal (PC) Plant > SET PARAMETERS > Water Systems > Wet Cooling Tower or 3. Wet Unit > Slip Stream Diagram |
|

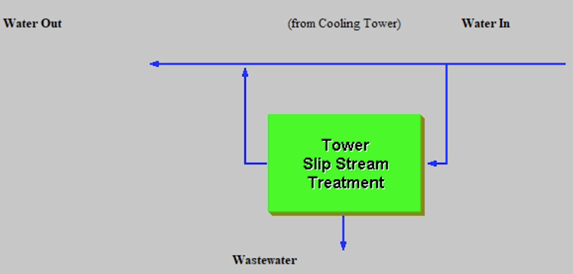

The Slip Stream Diagram parameter screen gives an overview of the slip stream treatment system. It is only shown when the Slip Stream Treatment System is chosen on the next screen (Config). This screen is the same for all plant types. It does not contain any numbers and is strictly for reference:
PC: SET PARAMETERS: Water Systems: Slip Stream Diagram
