Flue Gas Treatment Diagram

← Previous | Next →

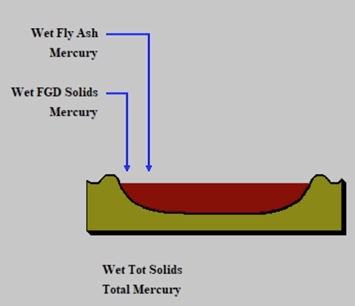

The Flue Gas Treatment Diagram parameter screen is only shown when Wet FGD is configured. This screen gives an overview of the flue gas treatment system. It does not contain any numbers and is strictly for reference:

PC: SET PARAMETERS: By-Product Management: Flue Gas Treatment Diagram
