IECM 12.0 beta User Manual > Modules Included with the IECM > Integrated Gasification Combined Cycle (IGCC) Plant > SET PARAMETERS > Air Separation Unit > Air Separation Diagram |
|

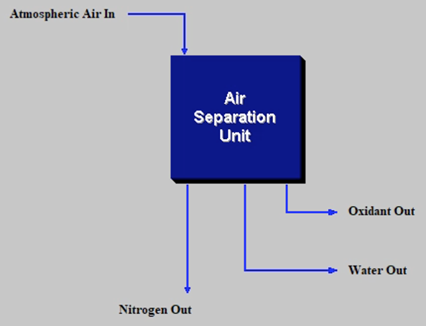

The Air Separation Diagram parameter screen gives an overview of the air separation unit for IGCC plants and oxyfuel systems in PC plants. This diagram does not contain any numbers and is strictly for reference:
IGCC: SET PARAMETERS: Air Separation Unit: Air Separation Diagram
