IECM 12.0 beta User Manual > Modules Included with the IECM > Integrated Gasification Combined Cycle (IGCC) Plant > SET PARAMETERS > CO2 Capture, Transport & Storage > 1. Water Gas Shift Reactor > Water Gas Shift Reactor Diagram |
|

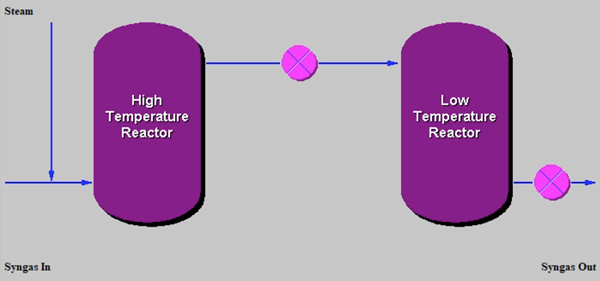

The Water Gas Shift Reactor Diagram parameter screen gives an overview of the water gas shift reactor (WGSR). It does not contain any numbers and is strictly for reference:
.png)
IGCC: SET PARAMETERS: CO2 Capture, Transport & Storage: Water Gas Shift Reactor: Water Gas Shift Reactor Diagram
