IECM 12.0 beta User Manual > Modules Included with the IECM > Integrated Gasification Combined Cycle (IGCC) Plant > SET PARAMETERS > CO2 Capture, Transport & Storage > 2. Ionic Liquid CO2 Capture > Ionic Liquid Diagram |
|

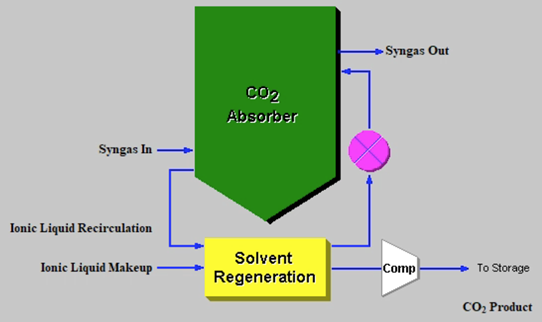

The Ionic Liquid Diagram parameter screen gives an overview of the Ionic Liquid CO2 capture system. It does not contain any numbers and is strictly for reference:
.png)
IGCC: SET PARAMETERS: CO2 Capture, Transport & Storage: Ionic Liquid CO2 Capture: Ionic Liquid Diagram
