CO2 Storage Diagram

← Previous | Next →

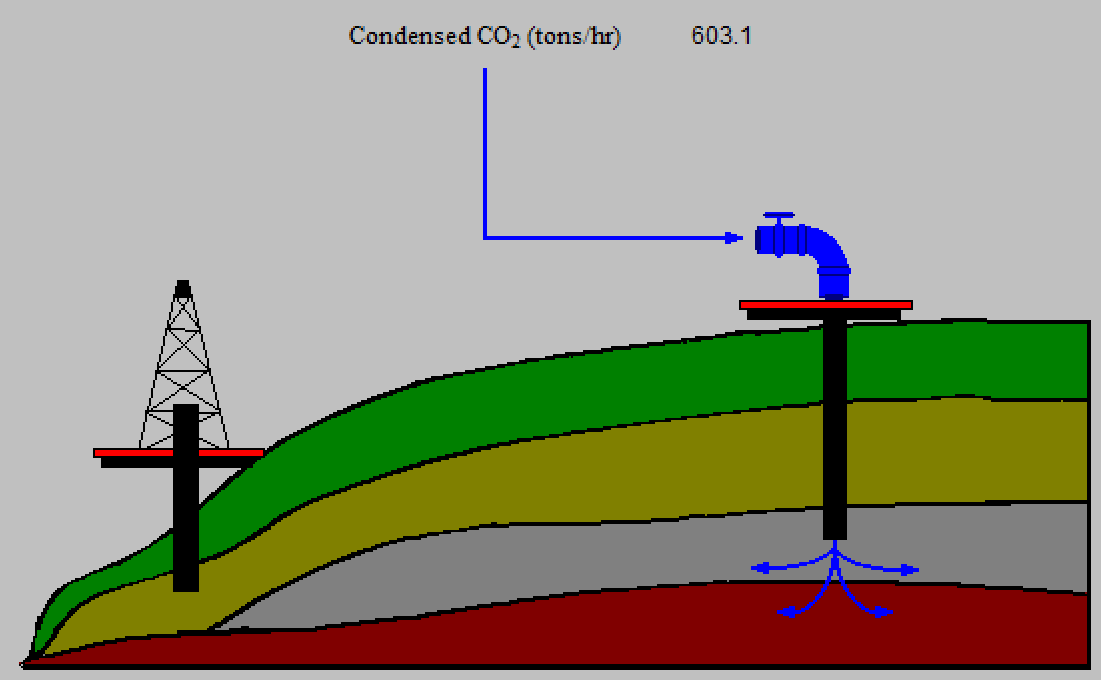

The CO2 Storage Diagram result screen shows the major flows into the Enhanced Oil Recovery (EOR) system. It is shown for all plant types:

PC: GET RESULTS: CO2 Control: 5. CO2 Storage: CO2 Storage Diagram

There is only one result shown on this screen:

•Condensed CO2: This is the flow rate of CO2 into the EOR system.
