The Overall Plant Diagram



← Previous | Next →



The Overall Plant diagram is found at SET PARAMETERS: Overall Plant: Diagram in all plant types. This is the first screen in the SET PARAMETERS Program Area; it will be displayed if you click on SET PARAMETERS in the Navigation Panel.

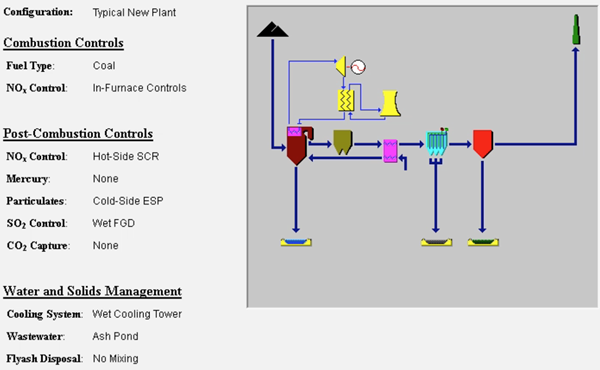

This is the Overall Plant diagram for a Pulverized Coal (PC) plant with the Typical New Plant configuration:


The Overall Plant Diagram

This diagram is very similar to the CONFIGURE SESSION: Plant Design screen. The difference is that all of the settings are displayed as static text rather than menus. This screen is provided for your reference; if you want to change anything displayed here, you will need to return to CONFIGURE SESSION.
