IECM 12.0 beta User Manual > A Case Study > Set Parameters >

Overall Plant

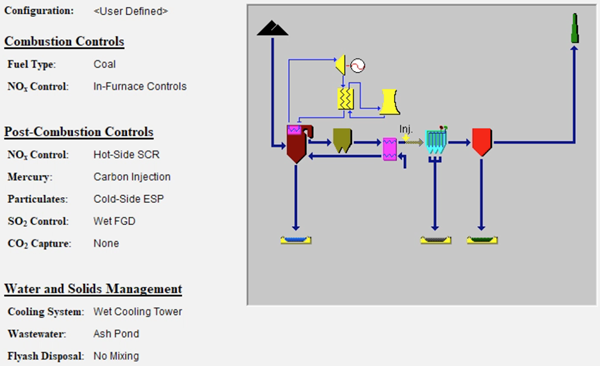

The first screen in the SET PARAMETERS program area is the Overall Plant Diagram:

SET PARAMETERS: Overall Plant: Diagram

This screen displays the plant configuration settings on the left and a diagram of the plant as configured on the right. No inputs are entered on this screen.

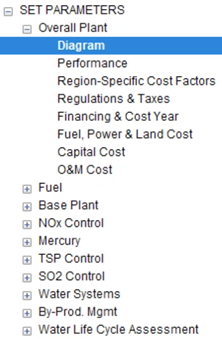

You can navigate to the other technologies by clicking on them in the Navigation Panel:

SET PARAMETERS in the Navigation Panel
