Hybrid Cooling System Diagram

← Previous | Next →

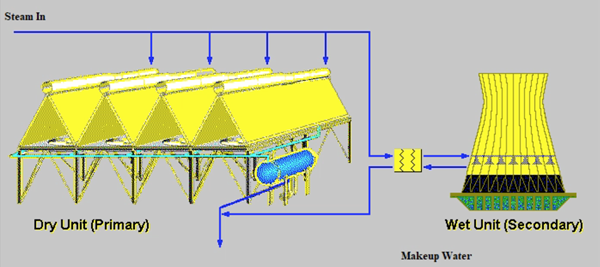

The Hybrid Cooling System Diagram parameter screen gives an overview of the hybrid cooling system. It is the same for all plant types. This diagram does not contain any numbers and is strictly for reference:

PC: SET PARAMETERS: Water Systems: 1. Hybrid Cooling System: Hybrid Cooling System Diagram
