Wastewater Treatment Diagram

← Previous | Next →

The Wastewater Treatment Diagram parameter screen is only shown when Chemical or Mechanical Wastewater Treatment is chosen on the Plant Design screen. This screen gives an overview of the wastewater treatment system. It does not contain any numbers and is strictly for reference. There are two options, depending on the type of wastewater treatment chosen:

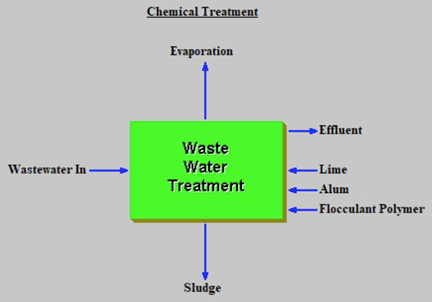

•Chemical Treatment:

PC: SET PARAMETERS: By-Product Management: Wastewater Treatment Diagram (Chemical Treatment)

•Mechanical Treatment:

PC: SET PARAMETERS: By-Product Management: Wastewater Treatment Diagram (Mechanical Treatment)
