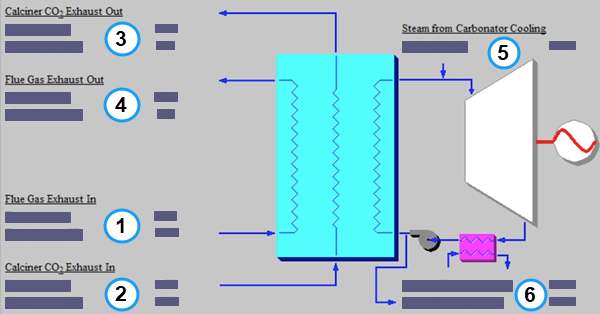

The Heat Recovery System Diagram result screen shows the major flows into and out of the chemical looping system's heat recovery system:
PC: GET RESULTS: CO2 Control: 1. Chemical Looping: Heat Recovery System Diagram
The following values are shown:
•Area 1: Flue Gas Exhaust In: This is the flue gas exiting the carbonator and entering the heat recovery system. The following attributes are reported:
•Flow
•Temperature
•Area 2: Calciner CO2 Exhaust In: This is the CO2 product stream exiting the sorbent regenerator and entering the calciner. The following attributes are reported:
•Flow
•Temperature
•Area 3: Calciner CO2 Exhaust Out: This is the CO2 product stream exiting the calciner. The following attributes are reported:
•Flow
•Temperature
•Area 4: Flue Gas Exhaust Out: This is the flue gas exiting the heat recovery system. The following attributes are shown:
•Flow
•Temperature
•Area 5: Steam from Carbonator Cooling:
•Flow: This is the flow rate of steam produced by the cooling process.
•Area 6: Water:
•Cooling Water: This is the amount of water required by the heat recovery system.
•Cond. Steam: This is the amount of condensed steam on the heat recovery system.
