Overall Plant

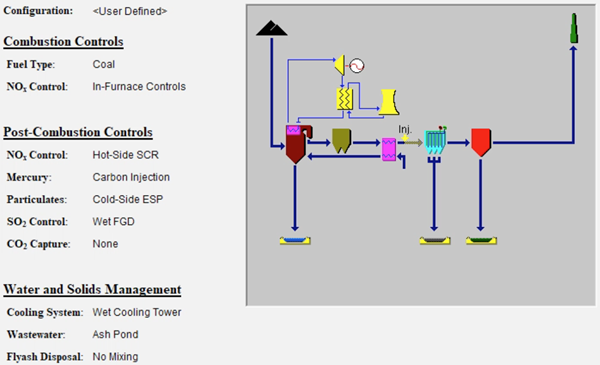

The first screen in the GET RESULTS program area is the Overall Plant Diagram:

GET RESULTS: Overall Plant: Diagram

This screen displays the plant configuration settings on the left and a diagram of the plant as configured on the right. It is the same as the Overall Plant Diagram found in SET PARAMETERS.

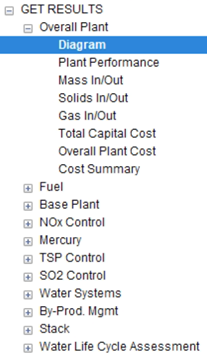

You can nagivate to the other technologies by clicking on them in the Navigation Panel:

GET RESULTS in the Navigation Panel
