Uncertainty Editor



← Previous | Next →



The Uncertainty Editor allows you to add, change or remove uncertainty from parameters that support it. To activate the Uncertainty Editor, click the Unc button on the left side of the value. The Uncertainty Editor looks like this:

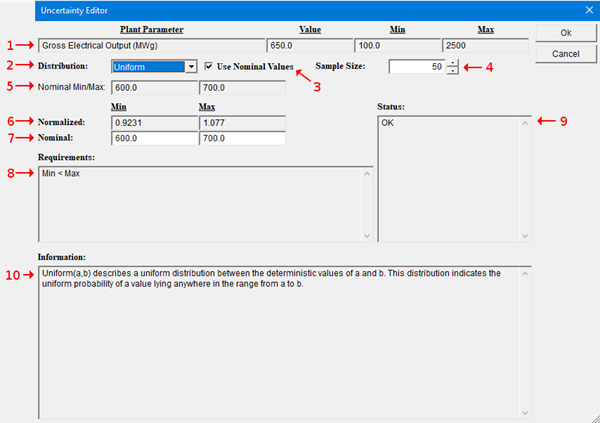

The Uncertainty Editor

The Uncertainty Editor is a Modal Dialog , meaning that it is on top of the other window(s) and you have to close it before you can continue using other parts of the IECM. Note that if you somehow manage to get it behind the other windows, you will need to locate it and bring it back to the front, moving other windows if necessary. (This is a good thing to keep in mind in general - sometimes modal dialogs, particularly for installers, inadvertently end up behind other windows, leaving the application silently waiting for you while you wonder why it isn't doing anything.)

When you are finished editing the uncertainty, click the Ok button in the upper right corner to save your changes, or Cancel to discard your changes.

The Uncertainty Editor contains these components, described in the following sections:

1.Parameter Information

2.Distribution Menu

3.Use Nominal Values Checkbox

4.Sample Size

5.Nominal Minimum & Maximum

6.Normalized Distribution Parameters

7.Nominal Distribution Parameters

8.Distribution Requirements

9.Status

10.Distribution Information
