Two Tables

Some result screens consist of a collection of values that wouldn't work well in a diagram . These are presented as two tables side-by-side to maximize the number of values that can be shown. Each of these tables has two columns, where the first column contains the title and units, and the second column contains the value.

This format is used in some performance summaries, including Plant Performance and Mass In/Out in the Overall Plant technology. For example, the GET RESULTS: Overall Plant: Plant Performance screen in a Pulverized Coal (PC) plant looks something like this:

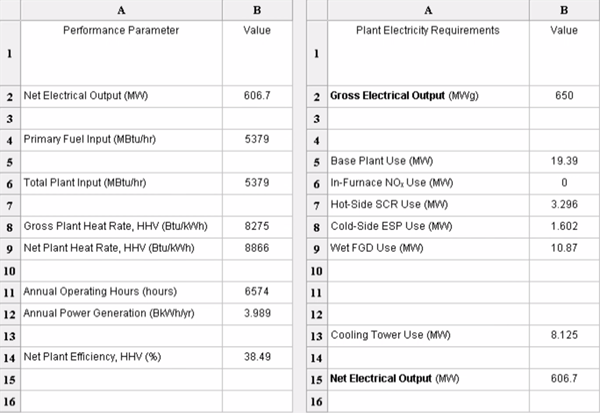

GET RESULTS: Overall Plant: Plant Performance

Some economic results are presented in this format as well, including the Capital and O&M Cost result screens in various technologies and process types , and the Total Capital Cost screen in the Overall Plant technology. For example, the GET RESULTS: Overall Plant: Total Capital Cost screen in a Pulverized Coal (PC) plant looks something like this:

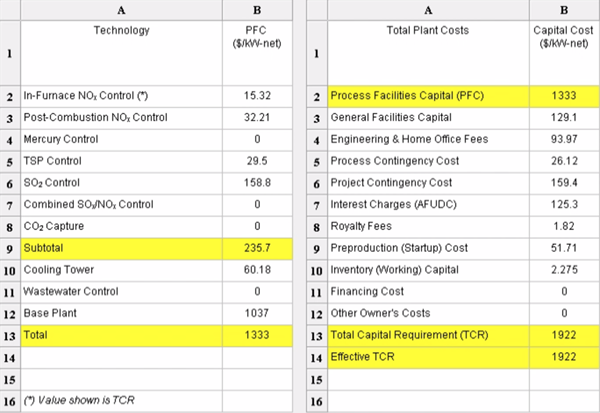

GET RESULTS: Overall Plant: Total Capital Cost
