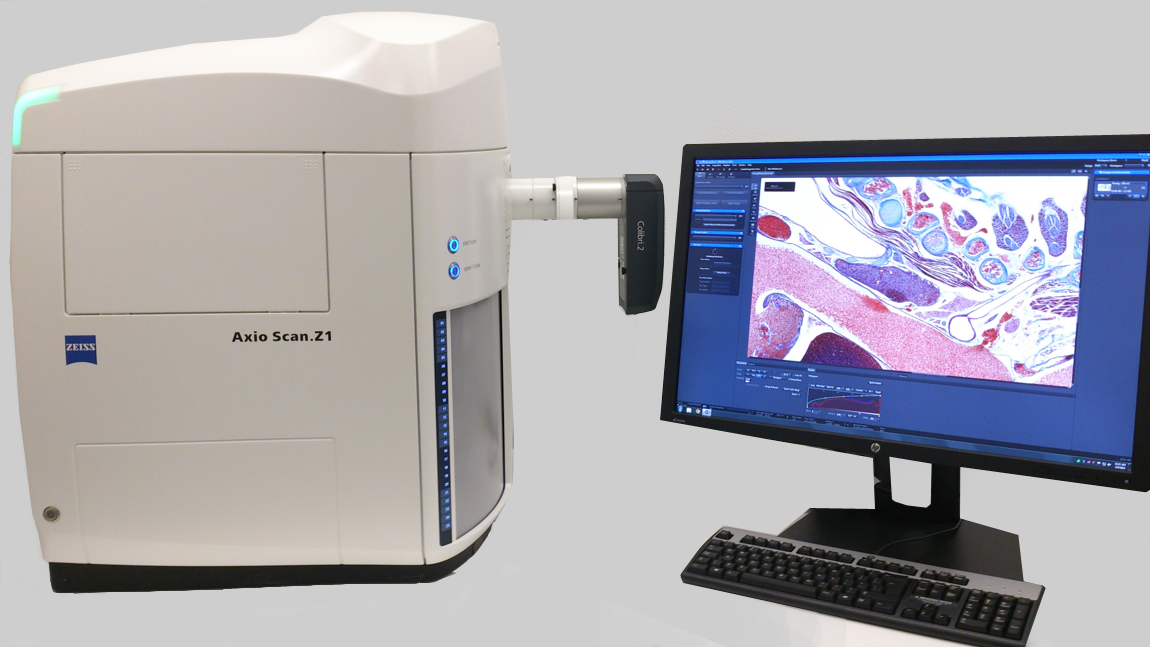

Zeiss Slides Scanner

Slides scanner (Bright-field, fluorescence and polarized light);

· Capacity of up to 100 1" X 3" microscope slides;

· LED brightfield

· LED fluorescence light source Colibri 7 (7-channels)

Red (630nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes

Yellow (590nm) for excitation of mCherry, Alex 568, mPlum and similar dyes

Green (555nm) for excitation of Cy3, TRITC, DsRed and similar dyes Cyan (511nm) for excitation of eCFP, Eosin, TOTO-1 and similar dyes

Blue (475nm) for excitation of eGFP, Fluo4, FITC and similar dyes

Violet (430nm) for excitation of eCFP, Lucifer Yellow, Alexa 430 and similar dyes

UV (385nm) for excitation of DAPI, Alexa 405, Hoechst 33258 and similar dyes

· Objectives:

Fluar 5x/0.25 WD, PApo 10x/0,45 WD, Plan-Apochromat 20x/0.8 (FWD=0.55mm), Plan-Apochromat 40x/0.95

· Filters:

DAPI, A488, TeRed, Cy5.
