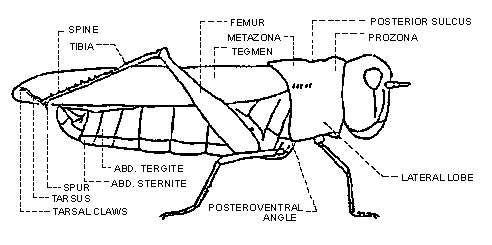

Figure 1. Side view of male grasshopper.
Figure 2. Front view of head of a grasshopper.
Figure 3. Ventral view of thorax and part of abdomen of Schistocerca lineata.

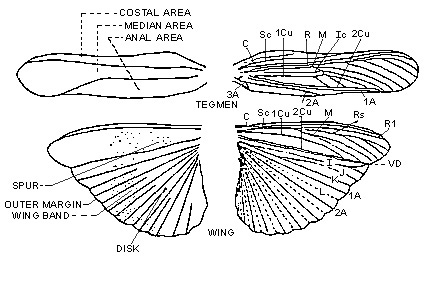

Figure 4. Tegmen and hind wing of grasshopper, dorsal view. 1A, 2A, 3A, primary anal
veins; C, costa; 1Cu, first cubitus; 2Cu, second cubitus; Ic, intercalary; I, J, secondary
anal veins of first anal plait; K, first concave anal vein; L, second concave anal
vein; M, media; R, radius; R1, first branch of radius; Rs, radial sector; r, first
anal plait; Sc, subcosta; VD, vena dividens. (Right hand figures after Brooks)

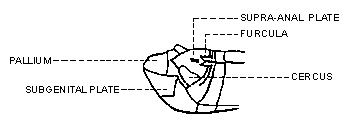

Figure 5. Dorsolateral view of end of abdomen of male grasshopper.
